AutosetEfficient — On TimeSafety — A Priority

BaleShears

Feed round bales safely from the cab. No leaving the tractor, no wasted time. Effortless comfort, every feed.

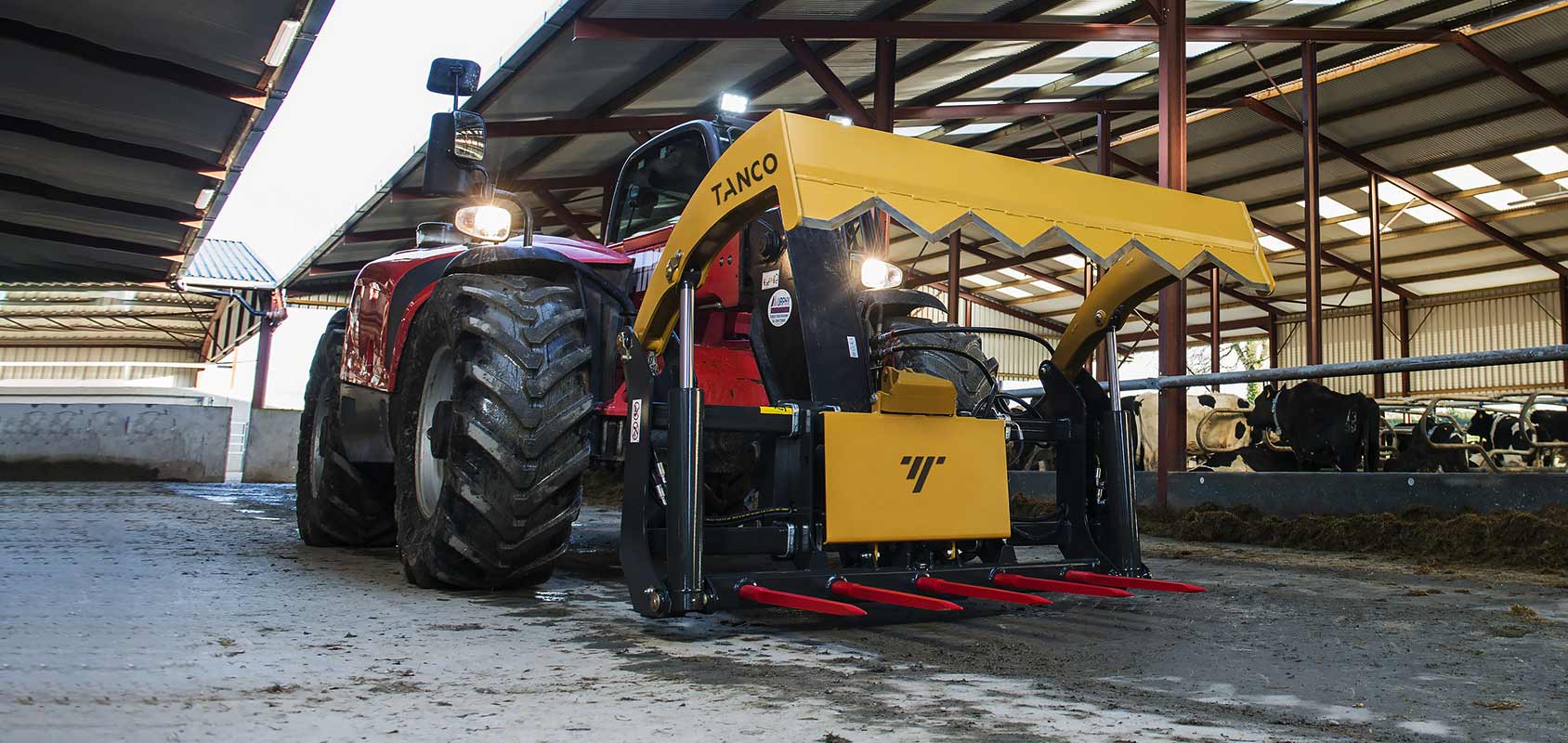

Tanco i73 BaleShear

BaleShear

i73 BaleShear

Save Time in Comfort

The i73 BaleShear was developed by Tanco to improve the feeding of round bales in winter months. Before the i73, feeding bales was labour intensive — operators had to exit the cab and manually open bales with pocket knives. The job was time consuming, posed safety risks, and made recycling plastic difficult.

Today with the i73 BaleShear, operators can stay within the safety of the cab. Bales up to 1.55m in diameter are picked and split into passageways, diet feeders and feeding rings. The plastic is held by a patented gripping mechanism that positively holds the plastic without piercing it, eliminating the likelihood of tearing. Once the bale is discharged the plastic can be driven to a drop off point.

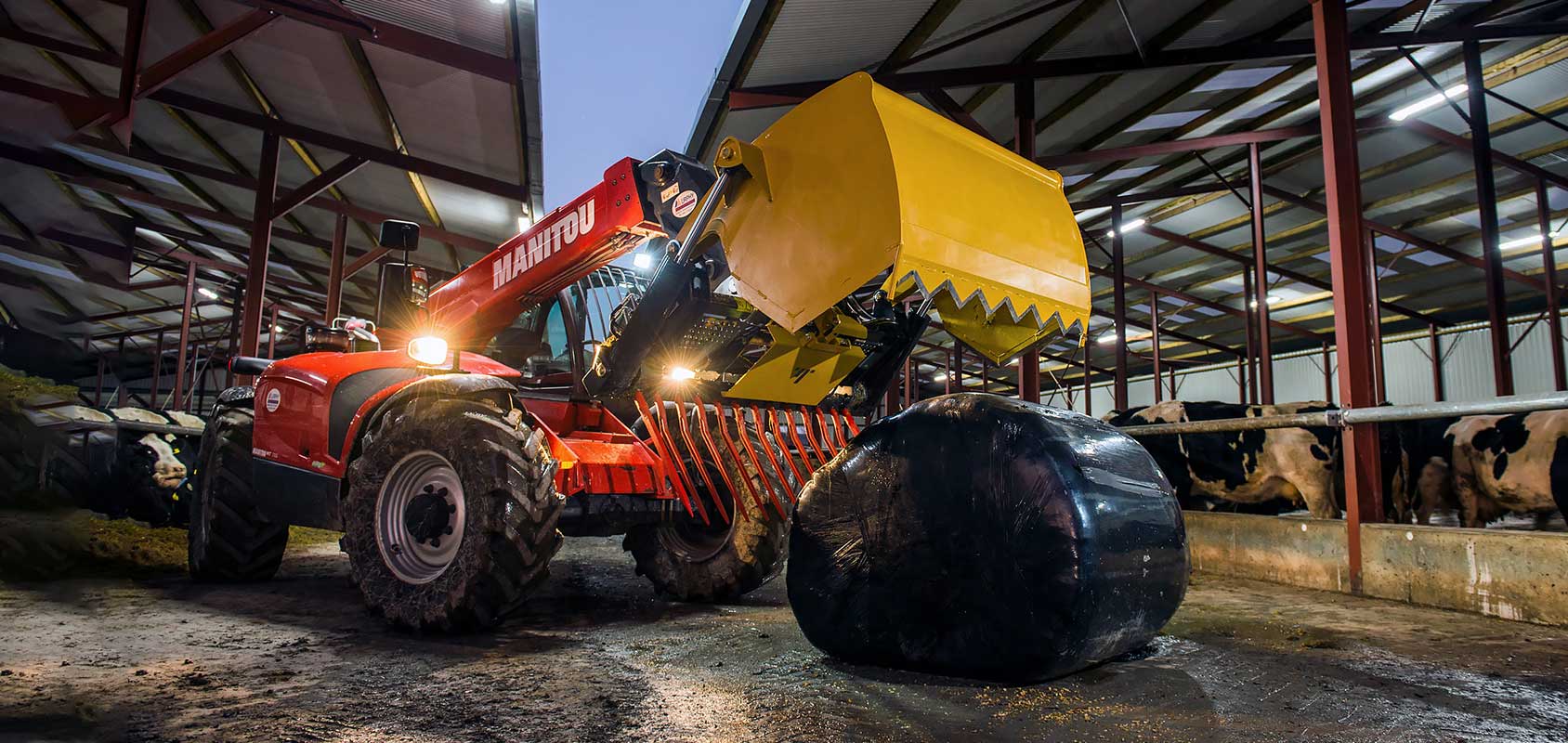

Tanco i75 MultiShear

MultiShear

i75 MultiShear

Efficiently Feed Baled & Bunker Feed

The i75 MultiShear was developed in response to customers who wanted a tool that had all the time-saving and safety benefits of the i73 but also worked with bunker feed. The i75 is a universal tool for handling both baled and bunkered feed.

Powered by two high capacity hydraulic rams, the front and side blades leave a clean face avoiding secondary fermentation. Both maize and silage feeds can be handled from a bunker. Bales can also be split while retaining the plastic and netting. Cranked tines are standard and there are no changes whatsoever when moving from bunker to baled material.

Technical Specifications

i73 BaleShear & i75 MultiShear

Weight & Dimensions

Specificationi73i75
Transport Length1.10m (3'6")1.30m (4'3")
Transport Width1.82m (5'9")2.00m (6'5")
Height in Transport0.85m (2'8")0.90m (2'9")
Weight435kg (959 lbs)740kg (1,631 lbs)
Capacity0.9 cu m (32 cu ft)

Bale Dimensions

Specificationi73i75
Width x Diameter (m)1.25 x (1.00–1.55)1.25 x (1.00–1.55)
US Round BaleUp to 4 x 5 ftUp to 4 x 5 ft
Max Bale Weight1,400kg (3,086 lbs)1,400kg (3,086 lbs)

Hydraulics

Specificationi73i75
Min Oil Consumption20 l/min (5.3 US gal/min)20 l/min (5.3 US gal/min)
Min Oil Pressure180 bar (2,600 PSI)180 bar (2,600 PSI)

i73 BaleShear

  • Splits round bales up to 1.55m in diameter while retaining the plastic
  • Feed directly on feed passageways, diet feeders and feeding rings
  • Cuts silage, hay, maize and straw with ease
  • Single standard hydraulic coupling

i75 MultiShear

  • Splits round bales from 1.2 to 1.5 metres in diameter
  • Feed directly on feed passageways or diet feeders
  • Feeds out both bales and bunkered silage, hay, maize and straw with ease
  • Single standard hydraulic coupling

Optional Extras

i74 Meal Bucket (i73 Only)Bolt-on Brackets for all modern tractors & loaders

Engineered with patented Tanco gripping technology — holds plastic without piercing it, eliminating tearing and making recycling easier.
